AS-2 Universal AutoSync

The AS-2 Universal AutoSync controller is designed to work with any two rotary or reciprocating compressors with powered pressure switches currently controlling the starter coils. When properly installed, the AS-2 will operate both compressors in either manual or automatic lead/lag control and provide efficient operation and lead/lag cycling of both compressors. Automatic Lead/Lag Control is field adjustable to “alternate” lead machines anywhere from a 10 min to 7 day swap cycle.


Installation:

The AS-2 is connected between the compressor pressure switches and the compressor starter coil. 110v is required to operate the internal relay, automatic timer, and the pressure switch and starter coil. The starter must have a 110v or 230v coil regardless of main input power. Enclosure is 6” x 6” x 4”, NEMA 12.


Option:  5-second totally unloaded soft starts for 2 recip compressors


NOTE:  The AS-2 only works with start/stop control and cannot be used on air compressors that have automatic dual control and the 6 minute time-out-to-stop control, in which case you would use an AS2PT.  Here's why!

Using the As-2 vs. the AS2PT

Installation Photos


    as-2 on 2 Ingersoll-Rand type 30 compressors

    AS-2 with TUSS Auto Initial Unloader System on 2 I-R Type 30s

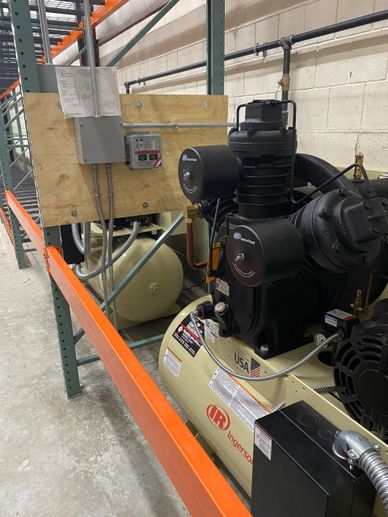

    Two I-R Type 30 Compressors with an AS-2 Basic Controller for Auto Lead/Lag Control

    AS-2 with TUSS Auto Initial Unloader System on 2 I-R Type 30s

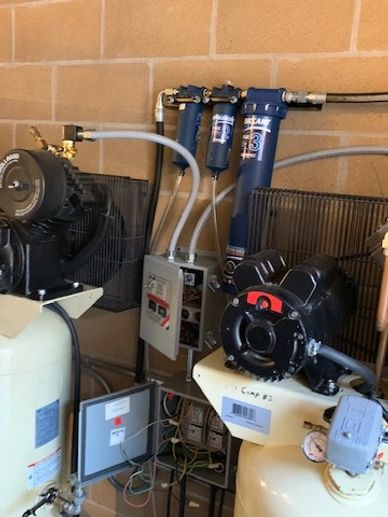

    AS-2 controls 2 Ingersoll-Rand Type 30 Air Compressors.

    Replaces FormX Type Leak Down Pressure Switches

    TUSS - 5-second Totally Unloaded Soft Start Option

    Two I-R Type 30 Compressors with an AS-2 Basic Controller for Auto Lead/Lag Control

    AS-2 with TUSS Auto Initial Unloader System on 2 I-R Type 30s

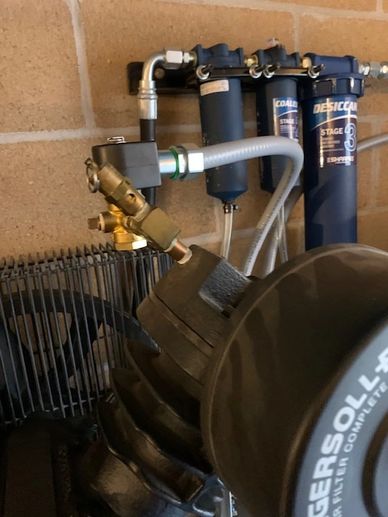

    Solenoid Valve and Intercooler Safety Valve Installation

    Two I-R Type 30 Compressors with an AS-2 Basic Controller for Auto Lead/Lag Control

    Two I-R Type 30 Compressors with an AS-2 Basic Controller for Auto Lead/Lag Control

    Two I-R Type 30 Compressors with an AS-2 Basic Controller for Auto Lead/Lag Control

    AS-2 on 2 Champion R10, 7-1/2hp Compressors at Mavis Tire

    Easy Installation! 1. One wire to pressure switch;  2. Two wires to starter coil on each compressor;  3. Set pressure for each compressor

      AS-2 alternates 2 Atlas Copco Compressors

      AS-2 Installed on 2 Rotaries
